StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable - 120 V AC, 230 V AC Input - 48 V DC, 750 mA Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W - Wall Mountable - Black
Description

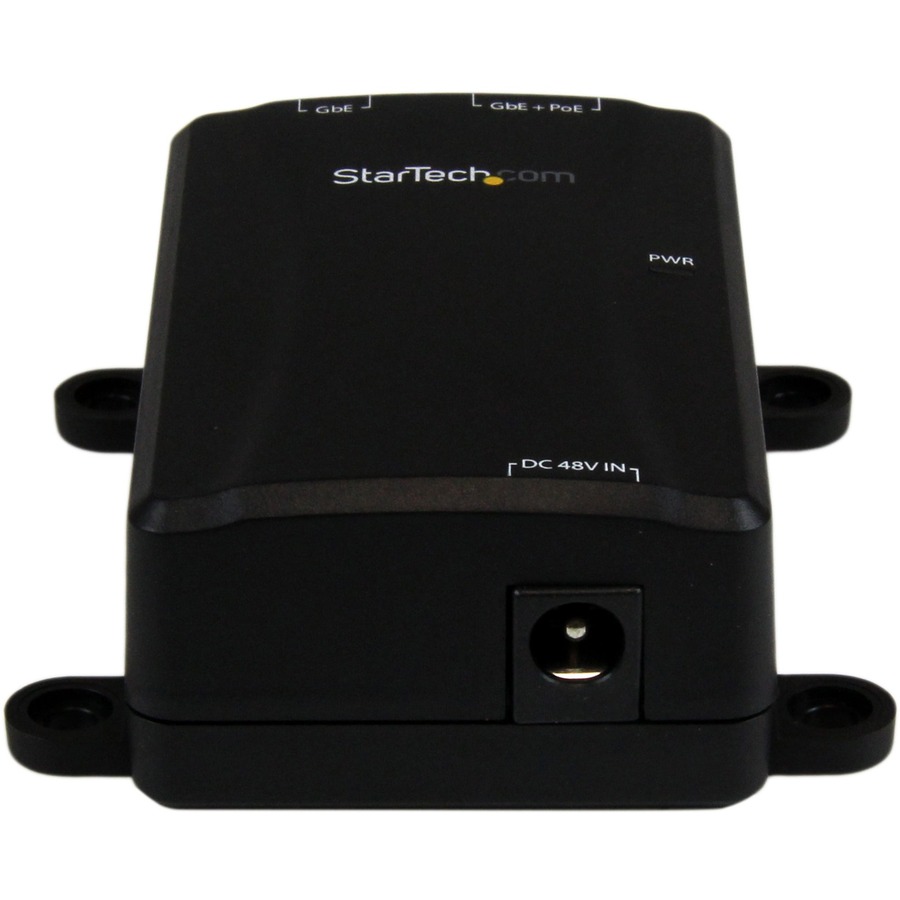

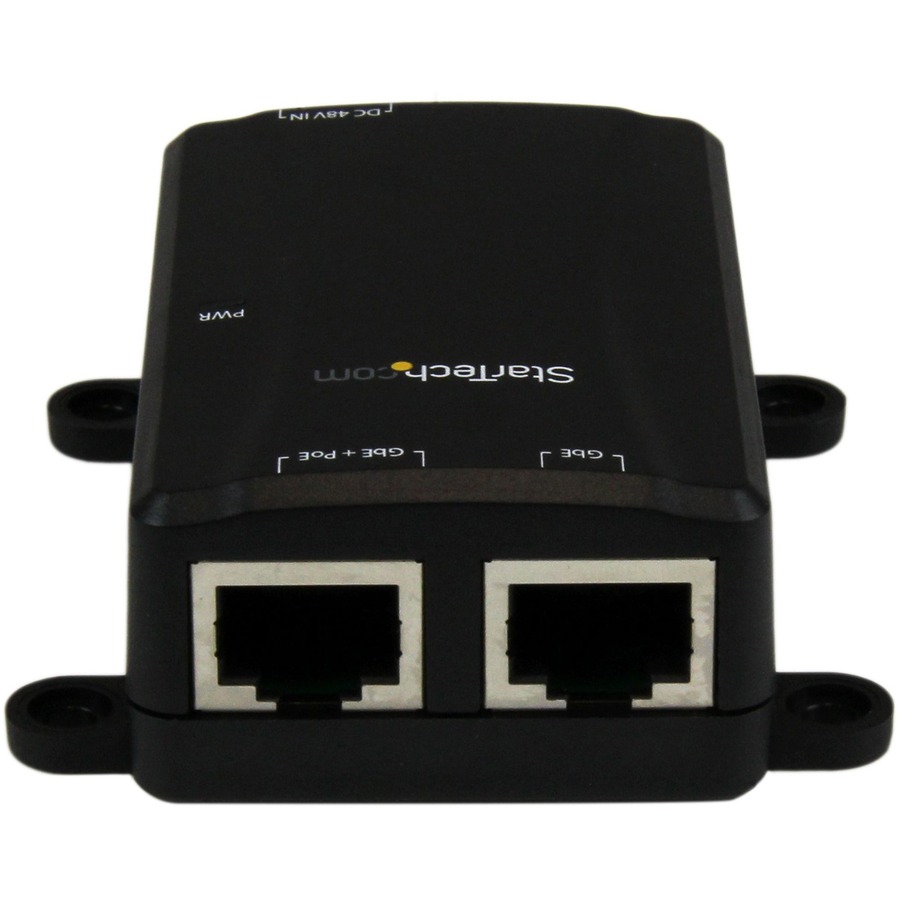

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn't available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that's perfect for installing on walls or under a desk, but it's also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Specifications
Ships in 6-10 Business Days
39121004
1.1lb
2.4in
6in
8in
StarTech.com
StarTech.com
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- CE
- FCC
Black
Taiwan
Restriction of Hazardous Substances (RoHS)
Yes
1"
1 x 10/100/1000Base-T
120 V AC
2.8"
2 Year
StarTech.com
POEINJ1G
http://www.startech.com
60 Hz
750 mA
750 mA
30 W
48 V DC
Wall Mountable
1 x 10/100/1000Base-T
- POE+ Injector
- 4 x Mounting Screws
- 1 x Universal Power Adapter
- 3 x Power Cords (NA/UK/EU)
- 1 x Instruction Manual
1 each
Black
1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable
PoE Injector
1.80 oz
2.5"
